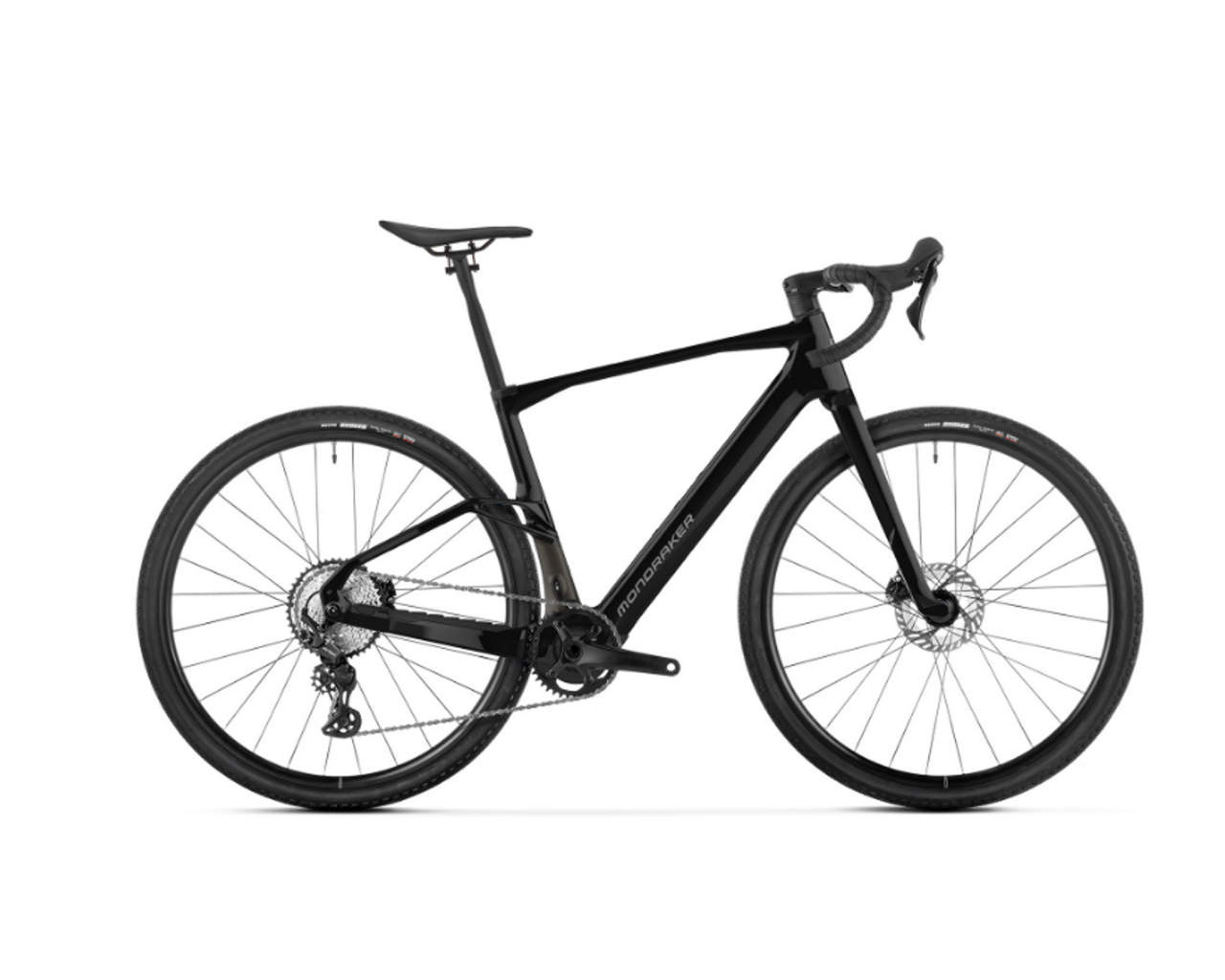

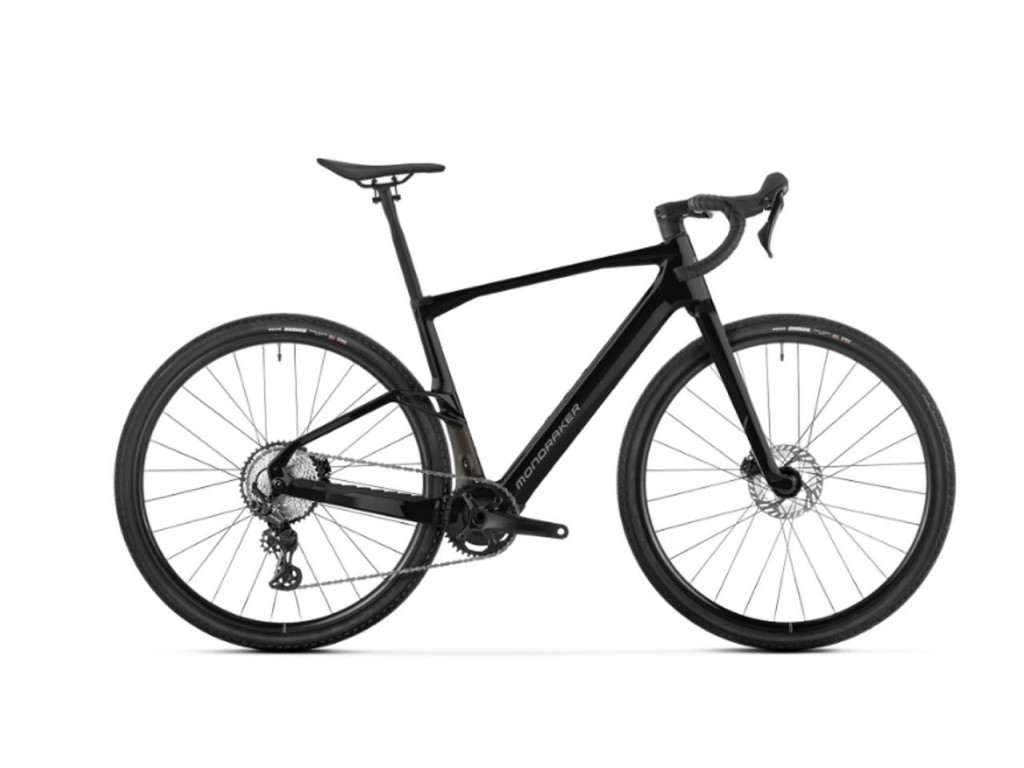

MONDRAKER DUSTY S 580 '27

Cuadro

Dusty Stealth Air Carbon, tapered head tube, HHG internal cable routing, integrated internal non-removable battery, 12x142mm rear axle, Flatmount brake compatible, integrated dropout speed sensor.

Tallas

S: 410mm / M: 450mm / ML: 480mm / L: 510mm / XL: 540mm

Horquilla

Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork

Dirección

Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing.

Potencia

Onoff Semi-Integrated, 31.8mm barbore, rise: -7°, length: S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm

Manillar

Onoff S3 GR 16º bar flare. Width sizes: S size: 400mm M size: 420mm ML size: 420mm L size: 440mm XL size: 460mm

Puños

Onoff HEX Bartape

Tija

Onoff S3 0-R, diameter 27,2mm, length 400mm

Sillin

Fizik Vento Argo X5 140mm

Freno delantero

Shimano GRX RX610, RX410 caliper, CL-800 ice tech 160mm centerlock rotor, resin pad

Freno trasero

Shimano GRX RX610, RX410 caliper, CL-800 ice tech 160mm centerlock rotor, resin pad

Manetas de freno

Shimano GRX RX610, tooled reach adjust, aluminium lever.

Llantas

Mavic Allroad Disc, 25mm internal width, hookless, 28 spokers

Radios

Mavic Steel J Bent spokes

Buje delantero

Mavic, 12x100mm, Centerlock

Buje trasero

Mavic infinity hub, 12x142mm, XD ID360 Ratchet system, Centerlock, MS Freehub

Neumático delantero

Maxxis Reaver 700x50, HYPR-X compound, EXO protection, tubeless ready, 120 TPI, folding bead

Neumático trasero

Maxxis Reaver 700x50, HYPR-X compound, EXO protection, tubeless ready, 120 TPI, folding bead

Bielas

E.13 Piedmont Core E*Spec, S size: 160mm M size: 165mm ML size: 165mm L size: 170mm XL size: 170mm

Platos

E.13 Helix Race 42T, 107BCD, Cnc alloy + E.13 Helix e.spec 107BCD alloy driver

Cadena

Shimano SLX CN-M7100, Quick-Link

Cambio - trasero

Shimano GRX RX822-SGS, 12s

Mandos - pulsadores de cambio

Shimano GRX RX610 dual control, alloy lever

Piñones

Shimano SLX CS-M7100, Hyperglide+, 10-51, 12s

Patilla de cambio

Sram UDH

Otros

*Optional external battery: TQ 160Wh

Display

TQ HPR Display V04 Color

Motor

TQ HPR-60

Bateria

TQ HPR Battery V05 580Wh
